Thermal Pad Series
Thermal Pad Series

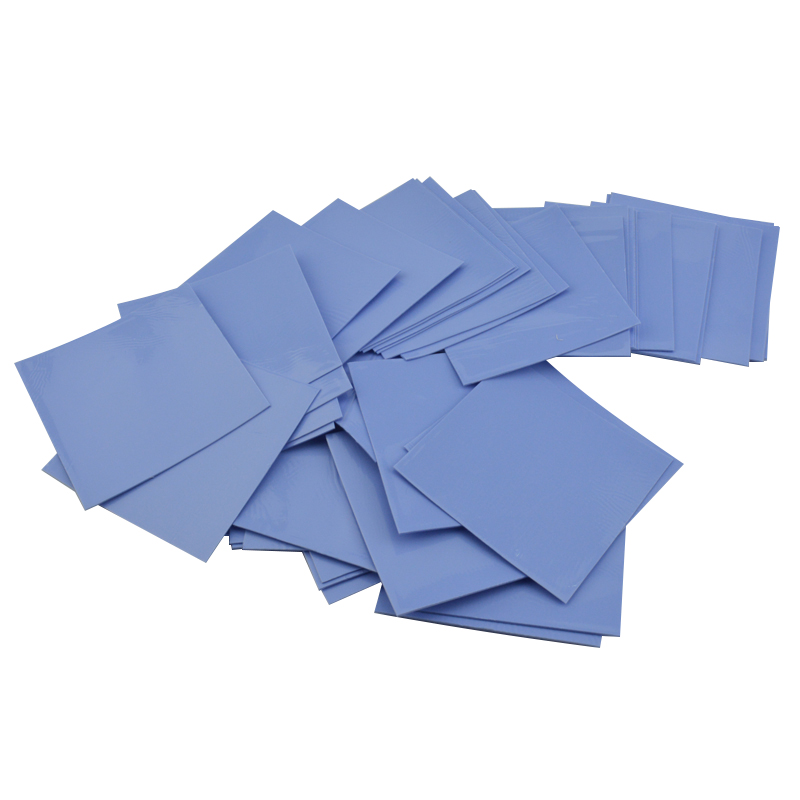

  • DSC_0069.jpg

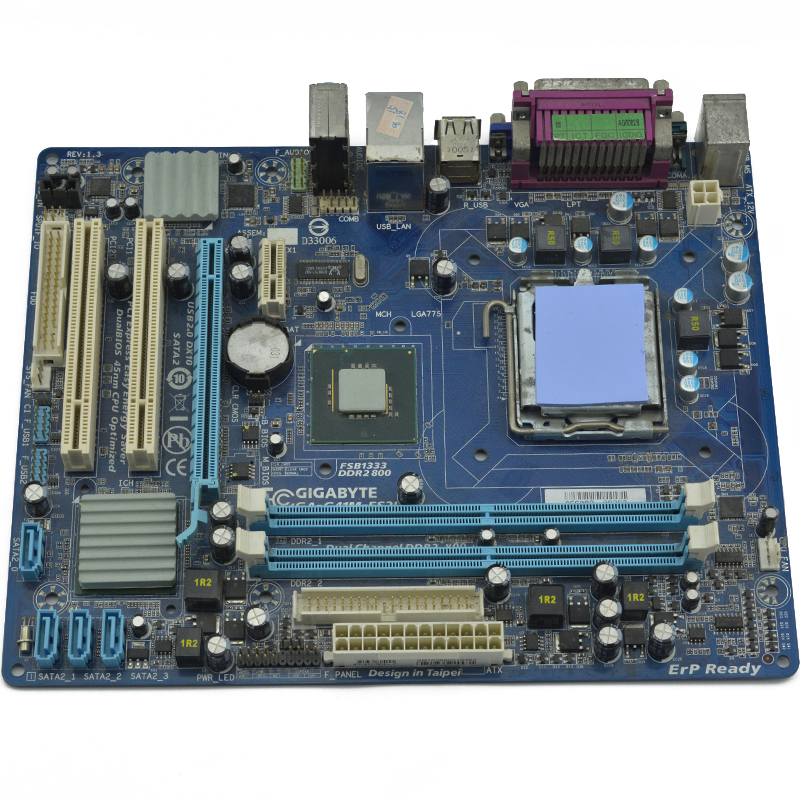

  • DSC_0122.jpg
  • DSC_0069.jpg
  • DSC_0122.jpg
  • PM300 Thermal Pad

    规格:310mm*310mm, 200mm*400mm according to customer needs cut the shape

    材料:

    型号:

    适用:

    Service Hotline: 0755-29304991
  • Product Details
  • Technical Parameters
  • Product Name : PM300 Thermal Silicone Pad


    PM300 thermal pad combine high thermal conductivity with compliance perfect, can fill the gaps, improve heating parts and the radiating part of the heat transfer capacity. These soft interface material can make the minimum pressure and the surface to combine , resulting in little or no stress on mating parts. Taking advantage of silicone soft and elastic characteristics, placed between the power heating device and heat dissipating structure, the power module effectively transfer the heat to the radiating component.


    Performance:

    ◆High thermal conductivity:3.2W/m-k

    ◆Stable Performance, low thermal resistance, effectively improve the heat transfer speed

    ◆Low hardness, its viscosity high, easy to use



    Applications:

    1.Car engine module, notebook computer

    2.Flat panel TV, mobile equipment, high-speed hard disk drive

    3.Between semiconductor and radiating fin

    4.Desktop, portable computer and server

    5.LED lighting device, the power supply of UPS

    6.LED and PDP flat panel display

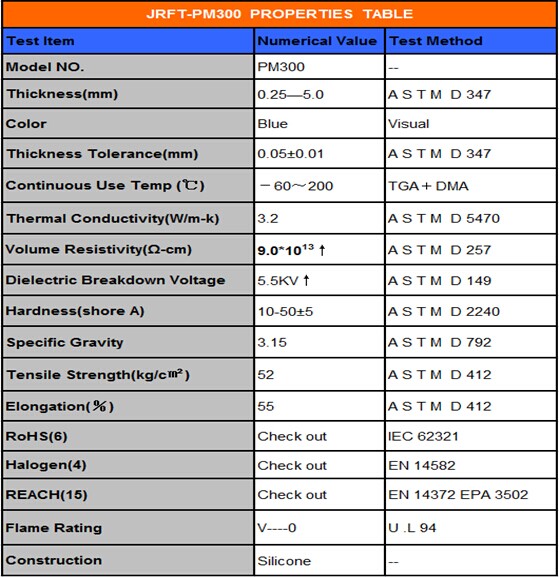

    Heat dissipation silicon
